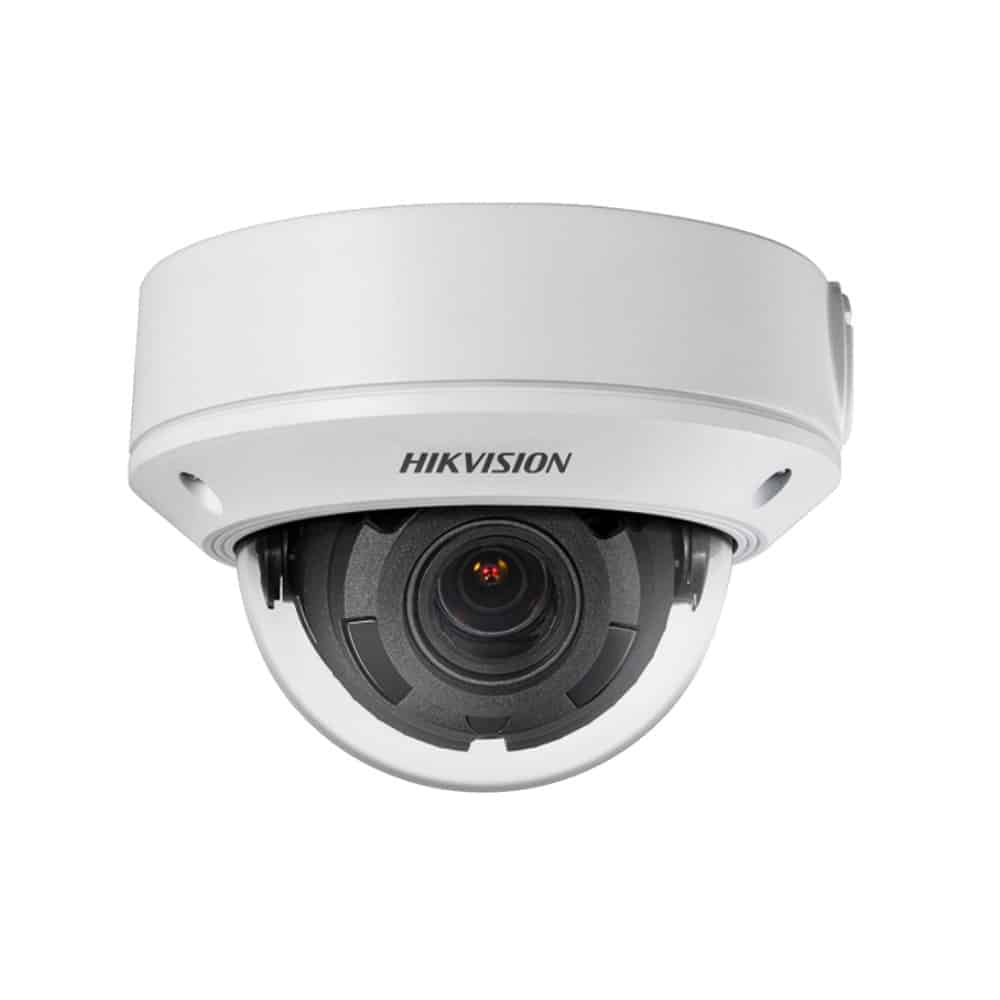

CAMARA DOMO IP 5MP, MOTORIZADO, IR30m, DS-2CD1753G0-IZ 2.8-12MM
CAMARA DOMO IP 5MP, MOTORIZADO, IR30m, DS-2CD1753G0-IZ 2.8-12MM
5 MP Varifocal Dome Network Camera
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Up to 128 GB SD card slot for storage
- 2.8 to 12 mm motorized vari-focal lens for easy installation and monitoring
- Water and dust resistant (IP67), vandal proof (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
- Specifications
Camera
Image Sensor 1/2.7″ Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2; AGC ON), 0.02 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120 dB
3-Axis Adjustment Pan: 0°to 355°, tilt: 0°to 70°, rotate: 0°to 355°
Lens
Focal Length 2.8 to 12 mm
Aperture F1.6
Focus
With –Z model: Auto
Without –Z model: Manual
FOV Horizontal FOV: 98°to 28°, vertical FOV: 71°to 21°, diagonal FOV: 130°to 35°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8Mbps
Smart Feature-set
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2560 × 1920
Main Stream 50Hz:12.5fps (2560 × 1920), 20fps(2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 15fps (2560 × 1920), 20fps(2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC/3D DNR
Image Settings Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
Day/Night Switch Auto/Scheduled/Day/Night
* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream.
Network
Network Storage Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
error, HDD full
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
General Function One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version V5.5.52
API ONVIF(PROFILE S,PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
Video Out (Without –Z
Model) 1 Vp-p Composite Output(75Ω/BNC)
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%
PoE: 802.3af, class 3
Power Consumption and
Current
With –Z model:
12 VDC, 0.8 A, max. 10 W
PoE (802.3af, 36 to 57 V), 0.4 A to 0.2 A, max. 12 W
Without –Z model:
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 to 57 V), 0.3 A to 0.1 A, max. 8 W
Protection Level IP67, IK10
Material Bubble: plastic, front cover & bottom base: metal
Dimensions Camera: Φ141 mm × 99 mm (5.6″ × 3.9″)
With package: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
Weight Camera: approx. 800 g (1.8 lb.)
With package: approx. 1050 g (2.3 lb.)
