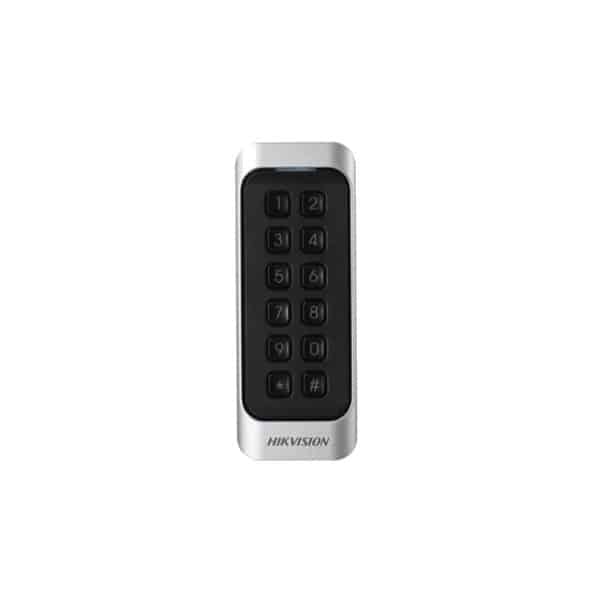

Lector de tarjetas con teclado MIFARE DS-K1107EK
Lector de tarjetas con teclado MIFARE DS-K1107EK
Lector de proximidad con teclado de tarjetas MIFARE, soporta protocolo RS485 y Wiegand(W26/W34), Tamper a prueba de manipulaciones, IP65.
| System Parameters | ||
|---|---|---|
| Card Reading Distance: | EM Card: ≤100 mm (≤3.94″) Mifare Card:≤50 mm (≤1.97″) | |
| ID Settings: | Setting by the DIP Switch on the Main Board | |
| Processor: | 32-bit | |
| General | ||
|---|---|---|
| Key Board: | No Keypad (DS-K1107E and DS-K1107M) Keypad with 12 Keys (0~9, *, #) (DS-K1107EK and DS-K1107MK) |
|
| Audio Alert: | Beeper | |
| Power Supply: | 12VDC | |
| Communication Interface: | RS-485 / Wiegand (DIP Switch) | |
| Power Consumption: | ≤2W | |
| LED Indicator: | Power Indicator; Status LED Indicator | |
| Protection Level: | IP 65 Water-Proof | |
| Installation: | Wall mounting with screws. The Gang Box is not supported. | |
| Temper-Proof: | Support | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 115mm × 44mm × 22mm (4.53»×1.73»×0.87») | |
