PTZ HD-TVI / TURBOHD 1MP / ZOOM 23X / DS-2AE5123T-A3 / HIKVISION

SKU DS-2AE5123T-A3 (C) Categories , , , , Tags ,

$350.000 Iva Incluido

Disponible para reserva

Share on facebook
Share on whatsapp
Share on google
Share on twitter

PTZ HD-TVI / TURBOHD 1MP / ZOOM 23X / DS-2AE5123T-A3 / HIKVISION

Descripción

PTZ HD-TVI / TURBOHD 1MP / ZOOM 23X / DS-2AE5123T-A3 / HIKVISION

PTZ HD-TVI / TURBOHD 1MP / ZOOM 23X / DS-2AE5123T-A3 / HIKVISION

– 1/3 “Progresivo CMOS
– 1MP (1080×720) @ 30 fpss
– 23X
– IP66, DWDR
– Salida TVI, BNC (analogo NTSC)
– 24 VAC, * fuente de alimentación no incluida
– No incluye bracket

Camera
Image Sensor: 1/3″ Progressive Scan CMOS
Effective Pixels: 1280(H)x720(V)
Signal System: PAL/NTSC
Minimum Illumination: F1.4, AGC On: Color: 0.05lux, B/W: 0.005lux
White Balance: Auto / Manual / ATW / Indoor / Outdoor
AGC: Auto/Manual
BLC: ON/OFF
WDR: DWDR
Shutter Time: PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day& Night: ICR
Digital Zoom: 16x
Privacy Masking: 8 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4-92mm, 23x
Zoom Speed: Approx.3.0s(Optical Wide-Tele)
Angle of View: 49-2.2 degree (Wide-Tele)
Minimum Working Distance: 10-1000mm(Wide-Tele)
Aperture Range: F1.4~F3.5
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range: -15°-90° (Auto Flip )
Tilt Speed: Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 256
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Freeze Frame: Support
Alarm
Alarm Input: 2
Alarm Output: 1
Input & Output
Turbo HD Output: 1 turbo HD720p output, BNC
Monitor Output: 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: English / Chinese
Power Supply: 24V AC
Power Consumption: Max. 20W (Heater On), Max. 12W(Heater Off)
Working Temperature/Humidity: -30 °C-65°C(-22°F-149°F)
90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: Φ185mm)×330(mm) (Φ7.28”×12.99”)
Weight (approx.): 4kg (8.81Ibs)
Mount Option: Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ

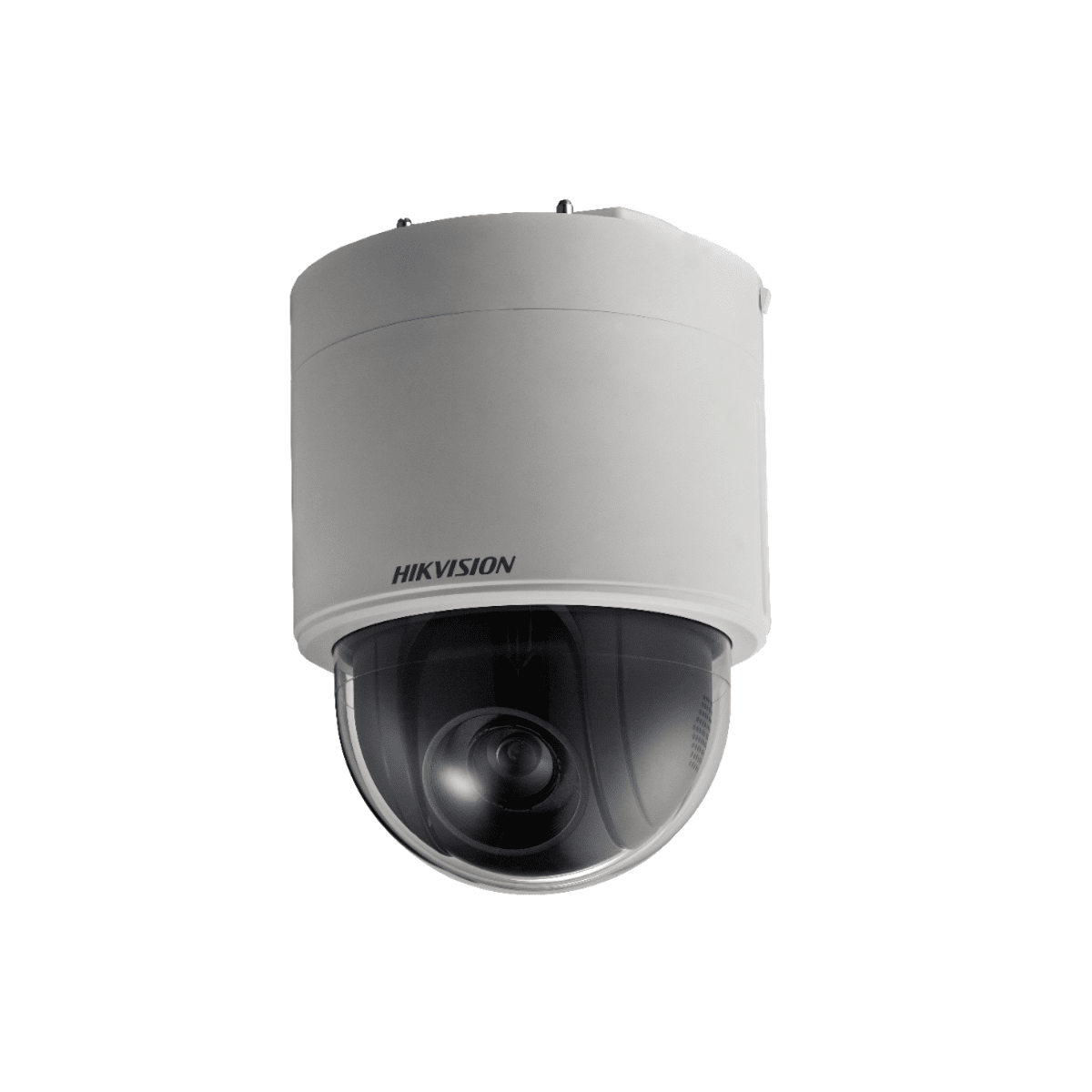

Resultado de imagen para DS-2AE5123T-A3

Información adicional

MARCA

TIPO

RESOLUCION

ZOOM
