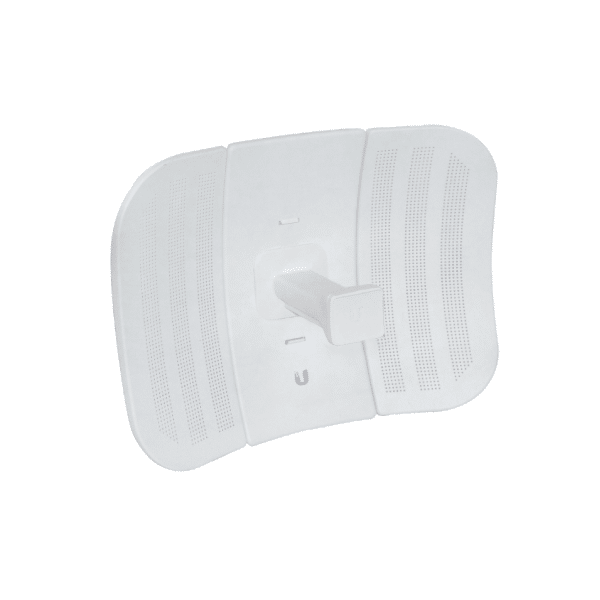

UBIQUITI LiteBeam-M5 23dbi 25dBm inc-PoE25V-5W 1-100 PoE, LBE-M5-23.

UBIQUITI LiteBeam-M5 23dbi 25dBm inc-PoE25V-5W 1-100 PoE, LBE-M5-23.

LBE-M5-23 Specifications
Physical / Electrical / Environmental
Dimensions
(No Mount)
362 x 267 x 184 mm
(14.25 x 10.51 x 7.24″)
Weight (No Mount) 750 g (24.11 oz)
Mounting Kit Pole Mounting Kit (Included)
Max. Power Consumption 4W
Power Supply 24V, 0.2A PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
ESD/EMP Protection ± 24 KV Contact / Air
System Information
Processor Specs Atheros MIPS 74Kc, 533 MHz
Memory 64 MB
Networking Interface (1) 10/100 Ethernet Port
Regulatory / Compliance Information
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Output Power: 25 dBm
TX Power Specifications RX Power Specifications
Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance 802.11n/airMAX
MCS0 25 dBm ± 2 dB
802.11n/airMAX
MCS0 -97 dBm ± 2 dB
MCS1 25 dBm ± 2 dB MCS1 -96 dBm ± 2 dB
MCS2 25 dBm ± 2 dB MCS2 -93 dBm ± 2 dB
MCS3 24 dBm ± 2 dB MCS3 -91 dBm ± 2 dB
MCS4 23 dBm ± 2 dB MCS4 -87 dBm ± 2 dB
MCS5 22 dBm ± 2 dB MCS5 -84 dBm ± 2 dB
MCS6 21 dBm ± 2 dB MCS6 -78 dBm ± 2 dB
MCS7 19 dBm ± 2 dB MCS7 -75 dBm ± 2 dB
Antenna Information
Operating Frequency Worldwide: 5150 – 5875 MHz
USA: 5725 – 5850 MHz
Output Power 25 dBm
Gain 23 dBi
Max. VSWR 1.5:1
